A donut-style chart with up to five rings, each representing a single data point, and contextual information displayed in the centre.
When to use a Metric chart
This format is ideal when you need to:
-
Highlight key metrics or KPIs using a clean, minimal circular layout.
-
Display up to five individual values, each as its own ring, to show comparisons at a glance.
-
Focus attention on a small number of key figures without the complexity of category breakdowns.
How to build a Metric chart

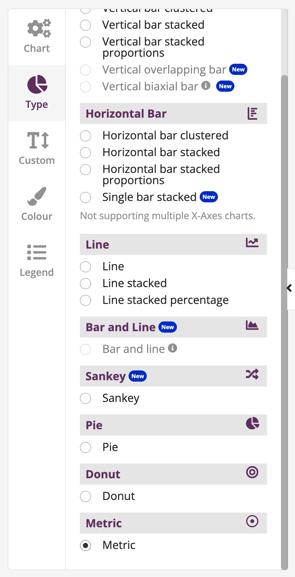

Step 1: Select the Chart Type
-
In the Explore Data tool, go to the Build Your Chart step.
-
Under the Type tab, select Metric.

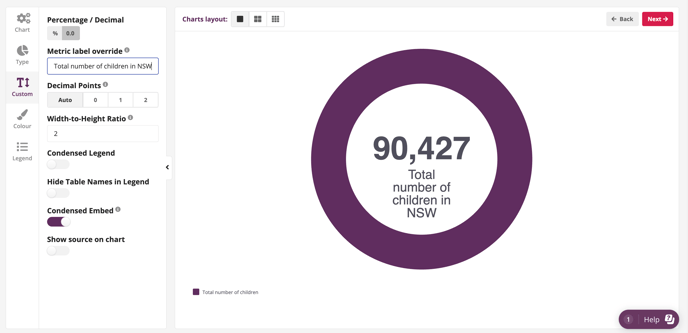

Step 2: Create Metric chart label
- Navigate to the Custom tab.
- Enter the text you want to display in the centre of the Metric chart.
💡 Tips for Metric Chart
-
The value of the innermost ring is displayed in the centre of the chart.
-
Which data points are shown depends on the chart table type and structure:
If there is only one chart table:
-
Calculation table (
calculation): uses the first row of data. -
Result table (
result):-
If the column item count is 1 or less: uses the first column.
-
If the column item count is greater than 1: uses the first row.
-
If there are multiple chart tables:
-
Always uses the first column of each chart table.
-

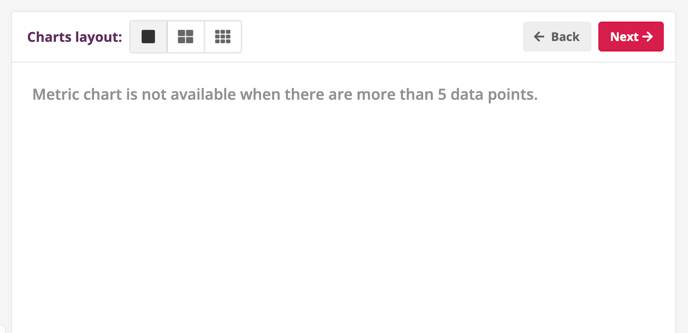

- A Metric chart can display up to 5 data points, with each point represented by a separate ring. If there are more than 5 data points, a warning message will be displayed:
Need help deciding which bar chart to use? Check out our visualisation selection guide.
